雙 10G 端口
釋放 10 Gbps 網絡的力量，用於遊戲、串流和其他需要高速的應用。LAN 聚合支持進一步將您的有線網絡提升至高達 20 Gbps，以滿足工作站 PC 或 NAS 伺服器等需求更高的設備。
四個 2.5G 端口
四個 2.5G 端口確保最大化的有線連接性和靈活性，為您最需要帶寬的遊戲鋪平道路，利用超快的互聯網連接。
專用遊戲端口
10 Gbps LAN 設置為專用遊戲端口，優先處理任何連接的遊戲設備。
多樣化的 WAN 選項
通過三個 WAN 端口設計選擇最適合您的 WAN，包括 10 Gbps WAN、2.5 Gbps WAN 或 USB WAN。此外，插入即用的 4G/5G 移動熱點確保隨時在線的互聯網連接。
網路標準
Wi-Fi 6 (802.11ax)
WiFi 7 (802.11be)
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
IEEE 802.11ac
IPv4
IPv6
產品區段

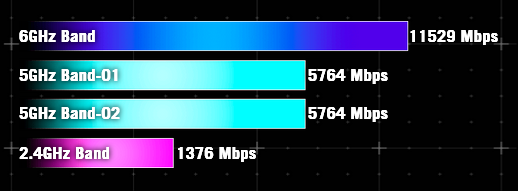

BE25000 ultimate BE performance : 1376+5764+5764+11529 Mbps
數據速率
2.4GHz BE: 4x4 (Tx/Rx) 4096 QAM 20/40MHz, up to 1376Mbps
5G-1Hz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160MHz, up to 5764Mbp
5G-2Hz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160MHz, up to 5764Mbp
6GHz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160/320MHz, up to 11529Mbp
傳送/接收
2.4 GHz 4 x 4
5 GHz-1 4 x 4
5 GHz-2 4 x 4
6GHz 4x4

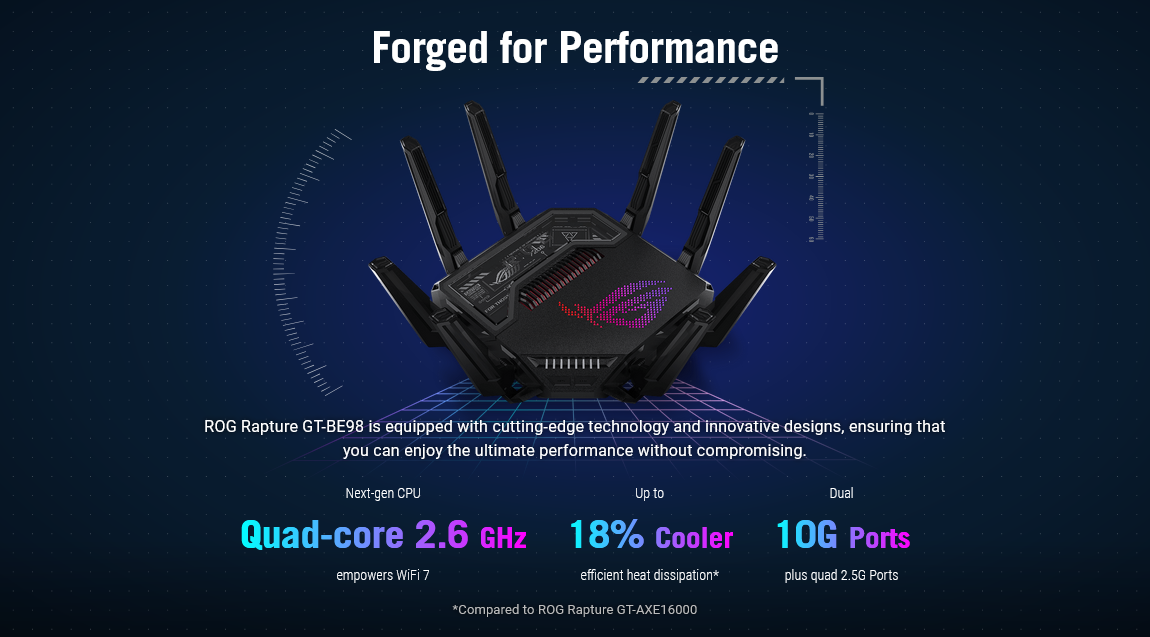

處理器
2.6GHz quad-core processor
記憶體
256 MB Flash and 2 GB RAM
Wi-Fi技術
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal

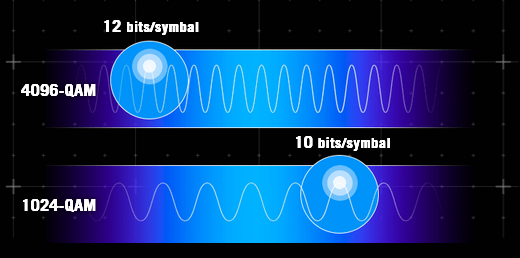

4096-QAM high data rate

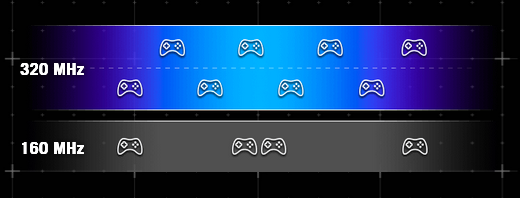

20/40/80/160/320 MHz bandwidth
運作頻率
2.4 GHz / 5 GHz / 6 GHz
Operating Mode
Router(AiMesh router), AiMesh node, Access point, Repeater, Media bridge

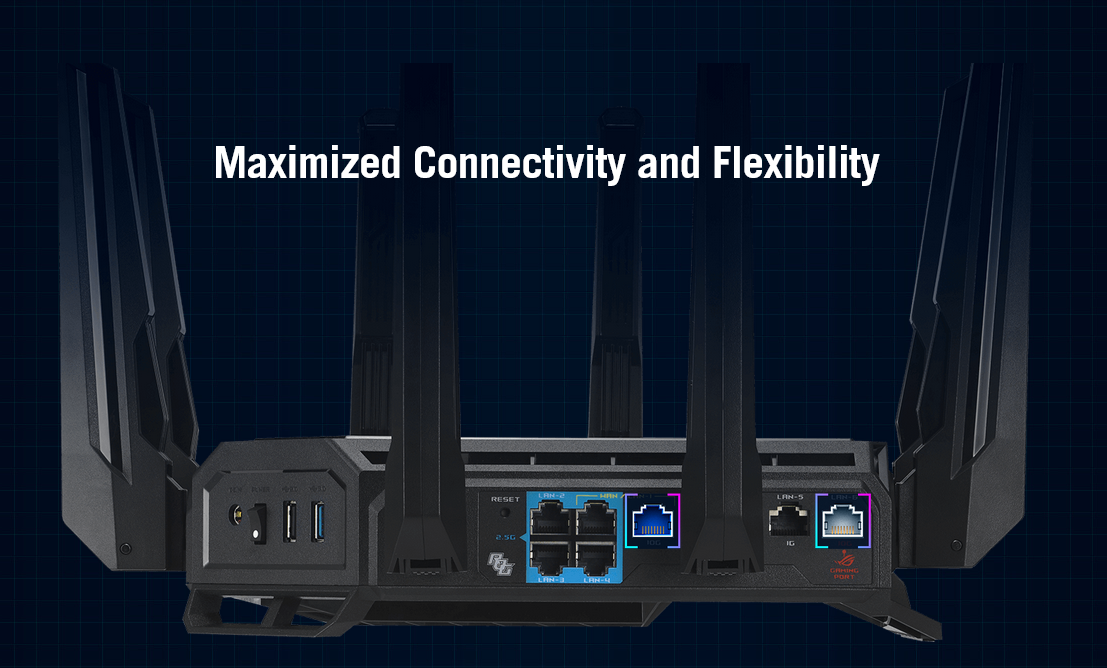

連接埠
1 x 10Gbps for WAN/LAN
1 x 2.5Gbps for WAN/LAN
1 x 10Gbps for LAN
3 x 2.5Gbps for LAN
1 x RJ45 10/100/1000Mbps for LAN
1 x USB 3.2 Gen1
1 x USB 2.0
按鍵
WPS Button, Reset Button, Power Switch, LED control Button
LED指示燈
WAN(Internet) x1
10G LAN x1
1G/2.5G LAN x1
6GHz x1
5GHz-1 x 1
5GHz-2 x 1
2.4GHz x1
Power x1
電源
AC Input : 110V~240V(50~60Hz)
DC Output : 19.5 V with max. 3.33 A current
套包內容
GT-BE98 quad-band gaming router
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card
Product Dimensions
350.41 x 350.41 x 220.6 mm
家長控制
是
• Maximum Parental Control profile : 64
• Maximum Parental Control content filter rule : 64
Guest Network
是
• Maximum Guest Network Rule : 2.4 GHz + 5 GHz : 5
Guest Network Connection time limit
Guest Network Encryption : Open system, WPA/WPA2/WPA3 Personal
Security
WiFi Encryption : WPA/WPA2/WPA3 Personal
WPA/WPA2/WPA3 Enterprise
Open System & OWE
是
Let's Encrypt
DNS-over-TLS
SSH
Security Scan
Firewall
• Maximum Firewall Keyword Filter : 64
• Maximum Firewall Network Service Filter : 32
• Maximum Firewall URL Filter : 64
AiProtection
AiProtection Pro
是
VPN
Instant Guard
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion
訊務控制
是
-- Maximum Bandwidth Limiter Rule : 32
• Traffic Analysis Period : Daily, Weekly, Monthly
WAN
Internet Connection Type : Automatic IP, Static IP, PPPoE, PPTP, L2TP
Dual WAN
3G / 4G LTE Dongle
4G / 5G Auto Mobile Tethering
Port Forwarding
• Maximum Port Forwarding Rule : 64
Port Triggering
• Maximum Port Triggering Rule : 32
DMZ
DDNS
NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay
LAN
DHCP Server
IPTV
LAN Link Aggregation
Manually Assign IP Address
• Maximum Manually Assign IP Address Rule : 128
Wake on LAN (WOL)
無線
是
• Maximum MAC Filters : 64
Airtime Fairness
RADIUS Client
Universal Beamforming
Explicit Beamforming
USB應用
4G / 5G Auto Mobile Tethering
File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
Safely Remove Disk
AiCloud
Download Master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder Privileges
User Interface
Operating system : ASUSWRT
管理
Configuration Backup and Restore
Diagnosis Tools
Feedback System
System Log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update
