Your Winning Choice
for Mobile Gaming!
Enjoy the fastest, smoothest WiFi gaming connections ever with the ASUS RT-AX82U dual-band WiFi 6 router. It delivers ultrafast WiFi speeds up to 5400 Mbps*, and is packed with advanced technology, including Mobile Game Mode for a lag-free, low-latency mobile gaming experience.
Gaming Without Limits
Prioritize via Gaming Port
The dedicated gaming port on RT-AX82U automatically prioritizes any wired device connected to it. No complex configuration is needed, just connect your gaming PC or console to the special LAN port to give you a fast, stable connection that's always at the head of the queue.
Prioritize via Gear Accelerator
Gear Accelerator lets you prioritize devices wirelessly via RT-AX82U's online control panel. The simple interface lets you prioritize devices to help boost their speed and prevent them fighting over bandwidth with other devices.
Eliminate WiFi Congestion
Connect your devices to the 5 GHz band and avoid the often-congested 2.4 GHz band, while enjoying up to 8.4X faster WiFi speeds. Also, optional Dynamic Frequency Selection (DFS) unlocks up to 15 of the least-congested channels on the 5GHz band to give you even more bandwidth for gaming.
Remove Network Bottlenecks
Adaptive QoS (Quality of Service) lets you keep your network running smoothly by prioritizing network traffic. You can prioritize applications such as streaming video or web surfing, as well as gaming. It's the perfect ally for delivering low-latency WiFi anywhere in your home.

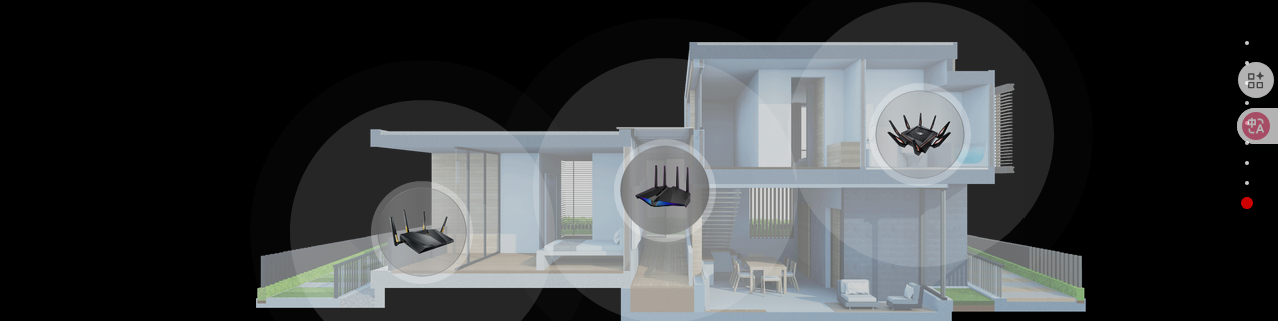

Whole-Home Gaming
Does your router leave you with WiFi dead spots? RT-AX82U supports ASUS AiMesh, a unique mesh-networking technology that creates a whole-home network using multiple ASUS routers. With easy central control and seamless roaming, even non-experts can set it up with any AiMesh-capable routers you own. Say goodbye to WiFi dead zones!
Network Standard
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6
Product Segment
AX5400 ultimate AX performance : 574+4804 Mbps
WiFi Data Rate
802.11a：up to 54 Mbps
802.11b：up to 11 Mbps
802.11g：up to 54 Mbps
802.11n：up to 300 Mbps
802.11ac (1024QAM)：up to 4333 Mbps
802.11ax (2.4GHz)： up to Mbps
802.11ax (5GHz)：up to 4804 Mbps
Antenna
External antenna x 4
Transmit / Receive
2.4GHz 2x2
5GHz 4x4
Processor
1.5 GHz tri-core processor
Memory
256 MB Flash
512 MB RAM
Boosts Speed
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth
Operating Frequency
2.4G Hz / 5 GHz
Operating Mode
Wireless router mode
Access point mode
Media bridge mode
Repeater mode
AiMesh node mode
I/O Ports
RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4
USB 3.2 Gen 1 x 1
Buttons
WPS Button, Reset Button, Power Switch, LED on/off
LED Indicator
Power x 1
2.4G x 1
5G x 1
WAN x 1
Power Supply
AC Input : 110V~240V(50~60Hz)
DC Output : 19 V with max. 1.75 A current
Package Content
RT-AX82U Router
RJ-45 cable
Power adapter
Warranty card
Quick start guide
Product Dimensions
275.5 x 184.4 x 165 mm (WxDxH)
Game
Mobile Game Mode
Gear Accelerator
Guest Network
• Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3
Guest Network Connection Time Limit
Security
AiProtection
WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support
• Maximum Firewall Keyword Filter : 64
• Maximum Firewall Network Service Filter : 32
• Maximum Firewall URL Filter : 64
Traffic Control
Adaptive QoS
-- Maximum Bandwidth Limiter Rule : 32
Traditional QoS
-- Maximum Traditional QoS Rule : 32
• Traffic Analysis Period : Daily, Weekly, Monthly
WAN
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
WAN Aggregation
• Maximum Port Forwarding Rule : 64
• Maximum Port Triggering Rule : 32
NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, PPPoE relay
LAN
LAN Link Aggregation
• Maximum Manually Assign IP Address Rule : 64
Wireless
• Maximum MAC Filters : 64
USB application
File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
