Elevate your smart home with blazing-fast tri-band WiFi 7 speeds of up to 9700 Mbps, boosted range with ASUS RF and AI-boosted Smart AiMesh technology and up to 20G of wired capacity. The ASUS RT-BE92U unleashes superior 6 GHz WiFi and future-proof 10G networking. With the new ASUS Network Security suite and advanced features such as the IoT Network, the RT-BE92U safeguards your network end-to-end, 24/7.
IEEE 802.11be
Faster, Smarter Home WiFi 7
The ASUS RT-BE92U boasts cutting-edge WiFi 7 technology with superior 6 GHz band. Enjoy next-generation speeds and connected experiences and cloud computing, including 8K streaming, HDR gaming, content creation and AI networking.
Superior 6 GHz WiFi
Boasting a superior 6 GHz band, the RT-BE92U unleashes blazing-fast tri-band WiFi 7 speeds of up to 9700 Mbps. It ensures comprehensive WiFi compatibility for a wide range of devices, from cutting-edge WiFi 6E mobile devices to legacy IoT devices.
Comprehensive MLO Support
Multi-Link Operation (MLO) enables buffering-free connections by intelligently combining and switching between the 2.4 GHz, 5 GHz, and 6 GHz bands. The ASUS RT-BE92U is built for the future of all WiFi 7 devices, regardless of the MLO mode they use.
Efficient 4K-QAM Transmission
Compared to 1024-QAM with WiFi 6/6E, 4096-QAM allows each signal to more densely incorporate larger amounts of data, delivering up to 20% more efficient data transmission.

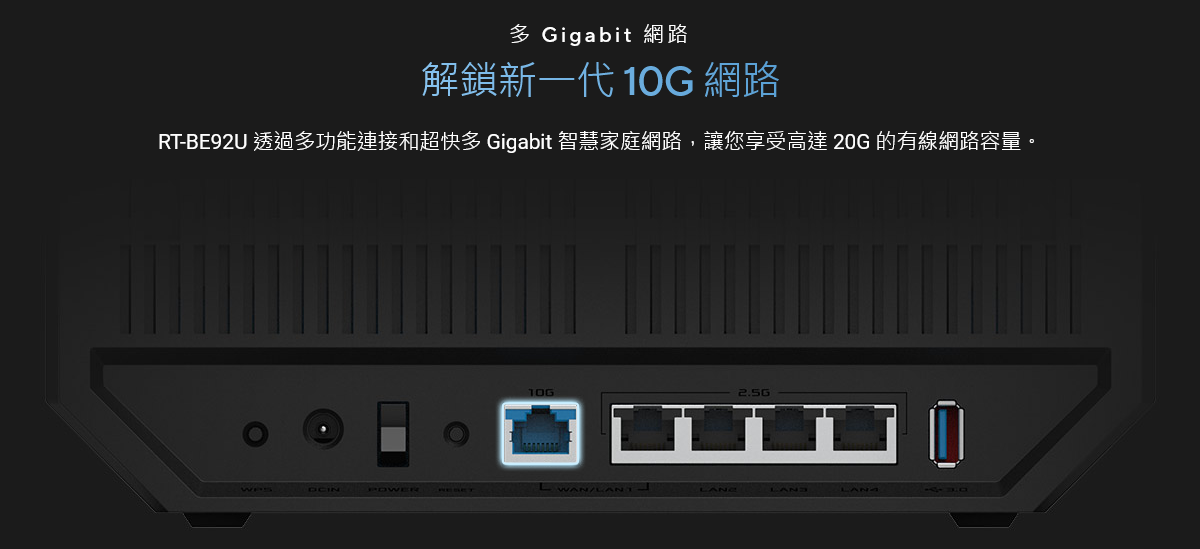

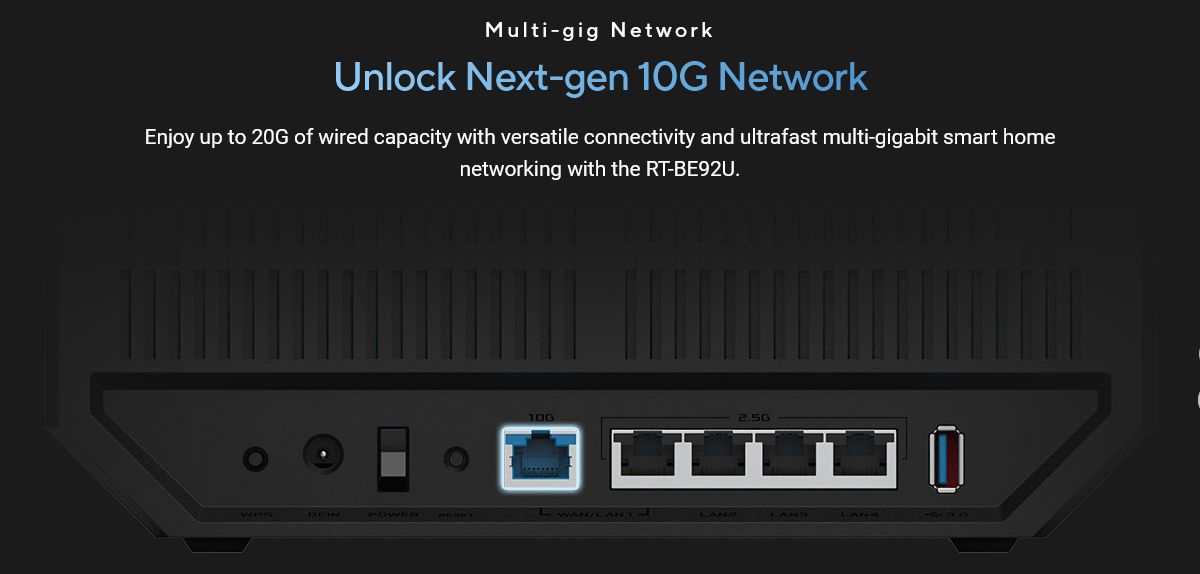

10G WAN/LAN
RT-BE92U includes one 10G WAN/LAN port and four 2.5G Ethernet LAN ports, making it ready for next-gen entertainment, home studios and robust 10 Gbps ethernet backhaul.
Network Standard
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
WiFi 6E (802.11ax)
WiFi 7 (802.11be)
IPv4
IPv6
Product Segment
BE9700 ultimate BE performance : 1032+2882+5764 Mbps
WiFi Data Rate
WiFi 7 (802.11be) (2.4GHz): up to 1032 Mbps
WiFi 7 (802.11be) (5GHz): up to 2882 Mbps
WiFi 7 (802.11be) (6GHz): up to 5764 Mbps
Antenna
External antenna x 4
Transmit / Receive
2.4GHz 3x3
5GHz 2x2
6GHz 2x2
Processor
2.0GHz quad-core processor
Memory
256 MB Flash and 1 GB DDR4 RAM
Boosts Speed
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
4096-QAM high data rate
20/40/80/160/320 MHz bandwidth
Operating Frequency
2.4 GHz
5 GHz
6 GHz
Operating Mode
Wireless Router Mode
AiMesh Node Mode
Access Point Mode
Media Bridge Mode
Repeater Mode
I/O Ports
1 x 10Gbps for WAN/LAN
1 x 2.5Gbps for WAN/LAN
3 x 2.5 Gbps for LAN
USB 3.2 Gen1 x1
Buttons
WPS Button, Reset Button, Power Switch
LED Indicator
Power x1
WAN x1
LAN x1
2.4GHz x1
5GHz x1
6GHz x1
Power Supply
AC Input: 110V~240V(50~60Hz)
DC Output: 12 V with max. 3 A current
Package Content
RT-BE92U WiFi 7 Tri-band Router
wall mount kit
RJ-45 cable
Power Adapter
Quick Start Guide
Warranty Card
Product Dimensions
247.18 x 101.59 x 287.47 mm / 9.73 x 4.00 x 11.32 inch
AiMesh
AiMesh
• Primary AiMesh Router
• AiMesh Node
Parental Control
"Allow you to block access to unwanted websites and apps."
Web & Apps Filters
Time Scheduling
Safe Browsing
Customized Internet Schedule
• Maximum Parental Control Profile : 64
• Maximum Parental Control Content Filter Rule : 64
Guest Network
"You can create additional networks for different purposes, these networks are separate from the main network domain, to provide enhanced security, and create comprehensive network environment with customized settings."
• Maximum Guest Network Rule : 2.4 GHz + 5 GHz : 3
Guest Network Pro Encryption : Open system, WPA/WPA2/WPA3-Personal
Security
AiProtection
VPN
WPA/WPA2/WPA3 Personal
WPA/WPA2/WPA3 Enterprise
Open System & OWE
WPS
Let's Encrypt
DNS-over-TLS
SSH
Security Scan
Firewall
• Maximum Firewall Keyword Filter : 64
• Maximum Firewall Network Service Filter : 32
• Maximum Firewall URL Filter : 64
AiProtection
AiProtection Pro
• Router Security Assessment
• Malicious Site Blocking
• Two-Way IPS
• Infected Device Prevention and Blocking
VPN
Instant Guard
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion
Support Surfshark
Traffic Control
Adaptive QoS
• Bandwidth Monitor
• Bandwidth Limiter
-- Maximum Bandwidth Limiter Rule : 32
Traditional QoS
Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
Traffic Analyzer
• Traffic Analysis Period : Daily, Weekly, Monthly
• Website History
WAN
Internet Connection Type :
• PPPoE
• PPTP
• L2TP
• Automatic IP
• Static IP
• IPSec
Dual WAN
3G / 4G LTE dongle
4G / 5G Auto Mobile Tethering
Port forwarding
• Maximum Port Forwarding Rule : 64
Port triggering
• Maximum Port Triggering Rule : 32
DMZ
DDNS
NAT Passthrough :
• PPTP Pass-Through
• L2TP Pass-Through
• IPSec Pass-Through
• RTSP Pass-Through
• H.323 Pass-Through
• SIP Pass-Through
• PPPoE Relay
LAN
DHCP Server
IGMP Snooping
IPTV
Manually Assign IP Address
• Maximum Manually Assign IP Address Rule : 128
Wake on LAN (WOL)
Wireless
MU-MIMO
UTF-8 SSID
WiFi MAC Address Filter
• Maximum MAC Filters : 64
Wireless Scheduler
Airtime Fairness
RADIUS Client
Universal Beamforming
Explicit Beamforming
USB application
4G / 5G Auto Mobile Tethering
File System :
• HFS+
• NTFS
• vFAT
• ext2
• ext3
• ext4
Safely Remove Disk
AiCloud
Download Master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder Privileges
User Interface
WEB: ASUSWRT
APP: ASUS Router APP
Administration
Configuration Backup and Restore
Diagnosis tools
Feedback System
System Log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update
