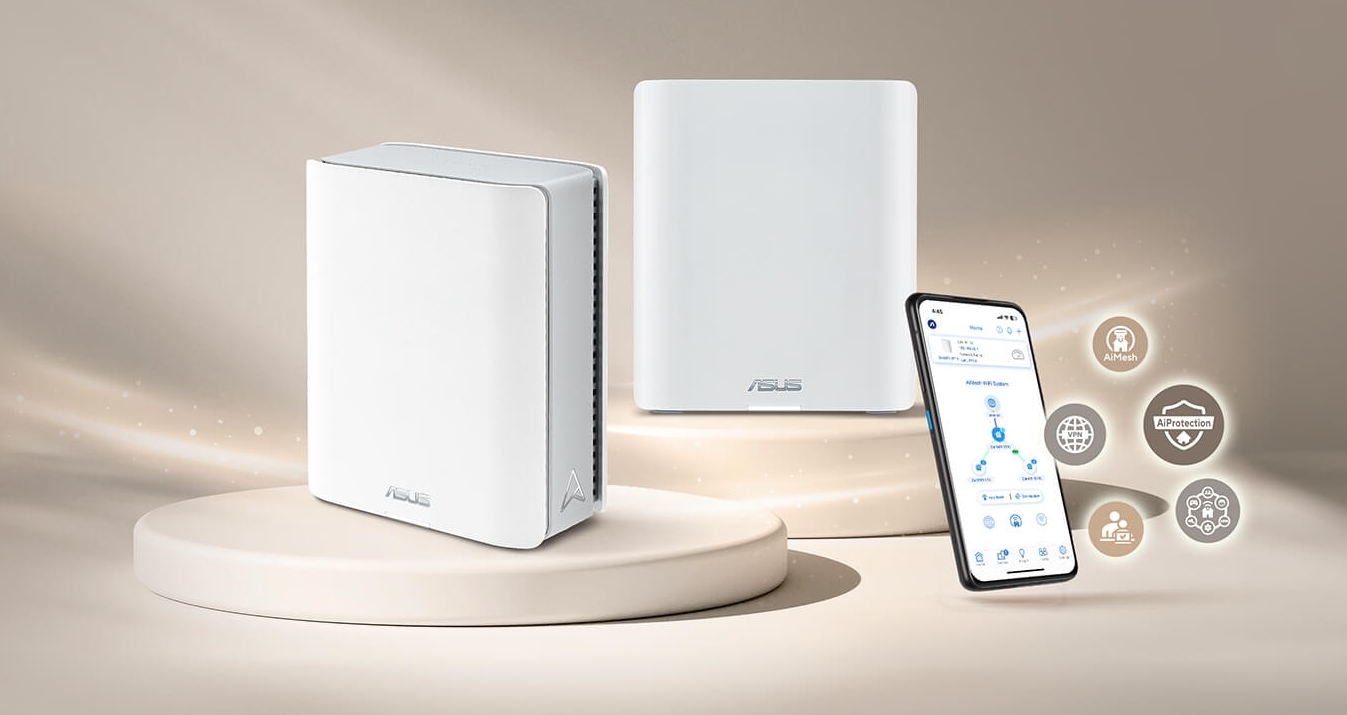

The ASUS ZenWiFi series advances your ever-evolving smart home with worry-free WiFi. The ASUS ZenWiFi BT10 raises the bar for whole-home mesh with WiFi 7 and next-gen Smart AiMesh technology. It delivers blazing-fast tri-band speeds up to 18 Gbps and unleashes superior 6 GHz WiFi. Along with ultra-high-speed dual 10-gigabit Ethernet ports and a suite of advanced network and security technologies, this mesh WiFi system is ready for the future of your smart home network today.
DESIGN
The Pinnacle of WiFi
ASUS ZenWiFi BT10 embodies our unwavering commitment to developing incredible in-house WiFi and network technologies. Seamlessly connect to your family and friends within a worry-free connected experience.
IEEE 802.11be
WiFi 7 Powering Premium Mesh
The ZenWiFi BT10 boasts cutting-edge WiFi 7 technology. This superior tri-band mesh system unleashes the full potential of WiFi 7 with wired backhaul options. Enjoy a next-generation connected experience for home entertainment and cloud computing, including 8K streaming, HDR gaming, content creation and AI.
Tri-band up to
18000 Mbps
Up to
2.4x Faster*
With 320 MHz & 4K-QAM
*Compared to WiFi 6E
Tri-band Multi-Link
With 2.4 GHz + 5 GHz + 6 GHz
Superior 6 GHz WiFi
Boasting a superior 6 GHz band, ZenWiFi BT10 unleashes blazing-fast tri-band WiFi 7 speeds up to 18 Gbps. It ensures comprehensive WiFi compatibility for a wide range of devices, from cutting-edge WiFi 6E mobile devices to legacy IoT devices.

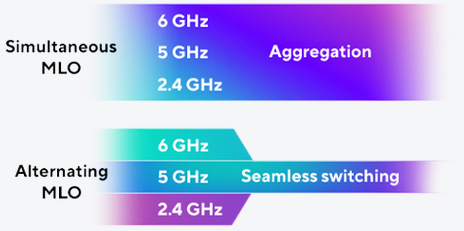

Comprehensive MLO Support
Multi-Link Operation (MLO) enables buffering-free connection by intelligently combining and switching between the 2.4 GHz, 5 GHz, and 6 GHz bands. ZenWiFi BT10 is built to be future-proof with all WiFi 7 devices, regardless of the MLO mode they use.

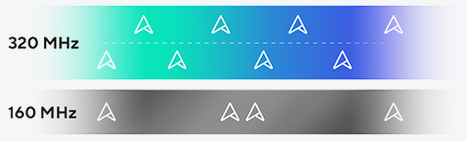

Ultrawide 320 MHz Channels
WiFi 7 introduces ultrawide 320 MHz channel bandwidth in the 6 GHz band, doubling data transmission capacity. This allows for significantly more simultaneous transmissions at the fastest possible speeds.

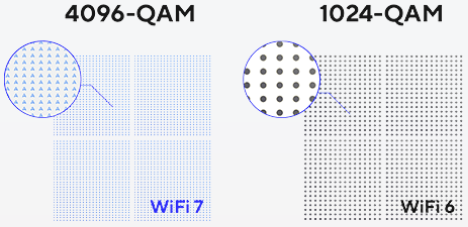

Efficient 4K-QAM Transmission
Compared to 1024-QAM with WiFi 6/6E, 4096-QAM allows each signal to more densely incorporate larger amounts of data, delivering up to 20%* more efficient data transmission.
MESH TECHNOLOGY
AI-Boosted Smart AiMesh
ZenWiFi BT10 harnesses the power of WiFi 7 and next-gen Smart AiMesh technology to deliver wider coverage, a more stable and secure network and a feature-rich network experience – all under one network name for your entire smart home.

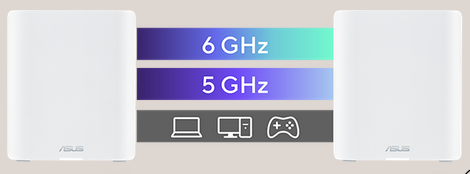

Intelligent Mesh Backhaul
Smart AiMesh backhaul intelligently leverages WiFi 7 Multi-Link Operation, automatically aggregating or switching across multiple bands for optimized performance and low latency.

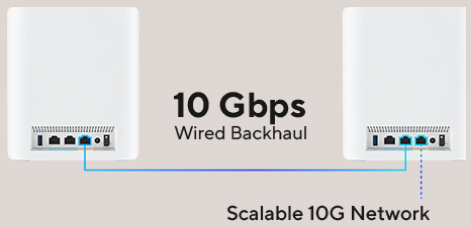

Scalable 10G Connectivity
Experience lightning-fast speeds even in homes with thick walls. With dual 10G ports, you can extend the 10G wired mesh backhaul between mesh nodes for strong, seamless connectivity, ensuring your entire home network stays connected and ready for the future.

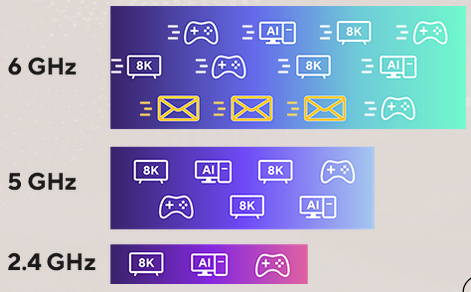

Smart MLO Connect
Smart AiMesh uses Multi-link Operation to achieve a faster connection. Intelligent algorithms direct low-priority packets to the less congested band, ensuring that high-priority packets remain lightning-fast for optimal data transmission.
Values Beyond Extension
AiMesh goes beyond just extending coverage or seamless roaming. It works with all compatible ASUS routers, offering easy management, advanced security and smart home features across your entire network.
Next-Gen Connectivity
Embrace the future of 10G home networking with the ZenWiFi BT10.

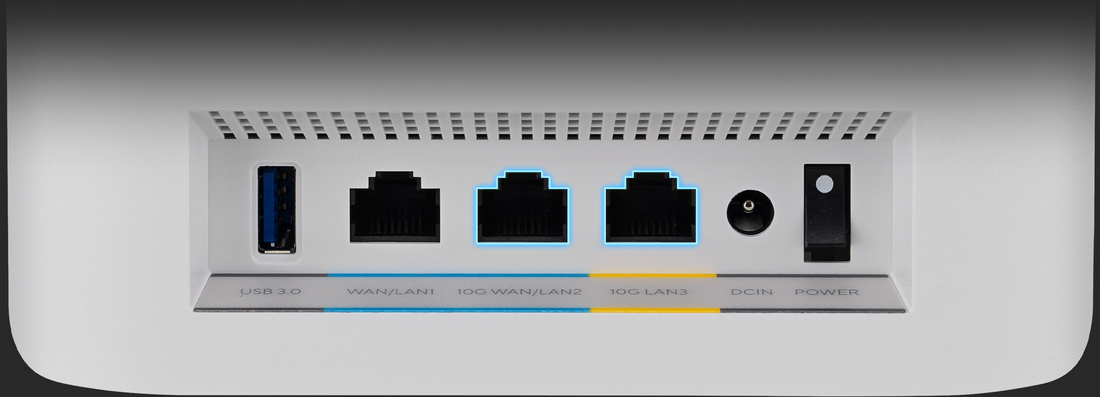

Dual 10G Ports
The ZenWiFi BT10 includes one 10G WAN/LAN port and one 10G LAN port, ready for next-gen entertainment, home studios, and ultra-fast 10G Ethernet backhaul.
Versatile WAN Options
The ZenWiFi BT10 provides versatile WANs, including a 10G WAN/LAN port, a Gigabit WAN/LAN port, and a USB WAN for flexible network configurations.
4G LTE & 5G Mobile Tethering
Stay connected anytime with the convenient USB 4G LTE and 5G mobile tethering, even during Internet outages or while on the go.
Network Security
Safeguard Everyone and Every Connected Device
In a connected world, your home network is the gateway to your digital life. Gain complete visibility and control over your home network, defend against emerging threats, and ensure seamless protection for all your connected devices and personal data. ASUS Network Security provides peace of mind with robust router protection, device protection, and secure connections.
Network Standard
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
WiFi 6E (802.11ax)
WiFi 7 (802.11be)
IPv4
IPv6
Product Segment

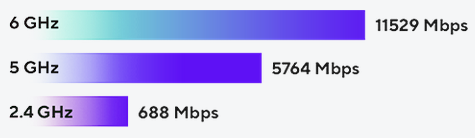

BE18000 ultimate BE performance : 688+5764+11529 Mbps
WiFi Data Rate
WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps
WiFi 7 (802.11be) (5GHz): up to 5764 Mbps
WiFi 7 (802.11be) (6GHz): up to 11529 Mbps
Antenna
Internal antennas x 8
Transmit / Receive
2.4GHz 2x2
5GHz 4x4
6GHz 4x4
Processor
2.0GHz quad-core processor
Memory
RAM 2GB , Flash 256MB
Boosts Speed
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
4096-QAM high data rate
20/40/80/160/320 MHz bandwidth
Operating Frequency
2.4 GHz
5 GHz
6 GHz
Operating Mode
Wireless Router Mode
AiMesh Node Mode
Access Point Mode
I/O Ports
10G WAN/LAN x 1
10G LAN x 1
1G WAN/LAN x 1
USB 3.0 x1
Buttons
WPS button, Reset button, Power switch
Power Supply
AC Input : 110V~240V(50~60Hz)
DC Output : 12V with max. 3A current
Package Content
ZenWiFi BT10
RJ45 cable
Power adapter
Warranty card
Quick start guide
Product Dimensions
159 x 72 x 186 mm
Remark
Content may vary in different regions and packages.
AiMesh
AiMesh
Primary AiMesh router
AiMesh node
Parental Control
Parental Control
Web & Apps Filters
Time Scheduling
Reward
Parental Control - Safe Browsing
Parental Control Customized Internet schedule

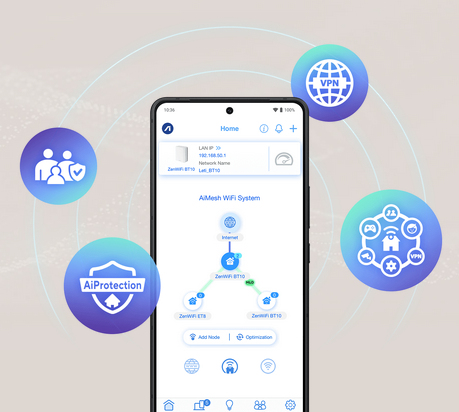

Router APP
ASUS Router APP
Guest Network
"The Guest Network provides Internet connection for guests but restricts access to your local network."
Guest Network
Security
AiProtection
VPN
WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
WPS
Let's Encrypt
DNS-over-TLS
Security Scan
Firewall
AiProtection
AiProtection Pro
有
Malicious site blocking
Infected Device Prevention and Blocking
VPN
Instant Guard
VPN Client L2TP
VPN Client OVPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server OVPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion
Traffic Control
Bandwidth Monitor
Bandwidth limiter
Traditional QoS
WAN
Android tethering
Port forwarding
Port triggering
DMZ
DDNS
LAN
DHCP Server
IGMP snooping
IPTV
Manually assign IP address
Wake on LAN (WOL)
Wireless
MU-MIMO
UTF-8 SSID
USB application
Android tethering
Administration
Diagnosis tools
Feedback system
System log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update
Smart Home
Support Google Assistant
